Locking the price/time scale ratio

 Post Reply Post Reply
Author
Message Reverse Sort Order / View First Unread Post
Peter View Drop Down
BullCharts Staff
BullCharts Staff
Avatar

Joined: 09 Sep 2004
Location: Australia
Posts: 241
Post Options Post Options   Quote Peter Quote  Post ReplyReply Direct Link To This Post Topic: Locking the price/time scale ratio
    Posted: 08 Dec 2004 at 10:23am
Many analysis methods, such as Gann, rely heavily on the relationship between price and time. When charts were drawn by hand on grid paper, it was easy to fix the price/time relationship (eg 1 grid box per week, and 1 grid box per dollar).

However, most charting applications will tend to scale the price axis and the time axis automatically and independantly, which can hinder analysis that relies on the price/time relationship.

BullCharts has a option called "Lock scale ratio", located in the price axis properties. This will ensure that the horizontal spacing between each bar on the chart is kept the same as the vertical spacing for the specified number of dollars on the price axis.

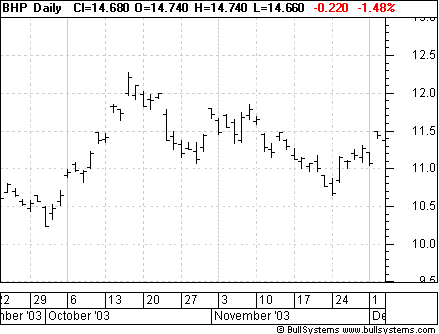

For example, the chart below has been set up so that 1 day on the time axis is the same size as 10 cents on the price axis. In this case the grid lines are also shown to be exactly square (though this is not always the case).



For a detailed discussion of the advantages and use of this feature, check out the whitepaper available on the BullCharts website.
